INJECTION MOLD TOOLING VALIDATION
Confirm mold performance, part quality and process stability before full production begins.
◆ Your files are securely protected and kept confidential.

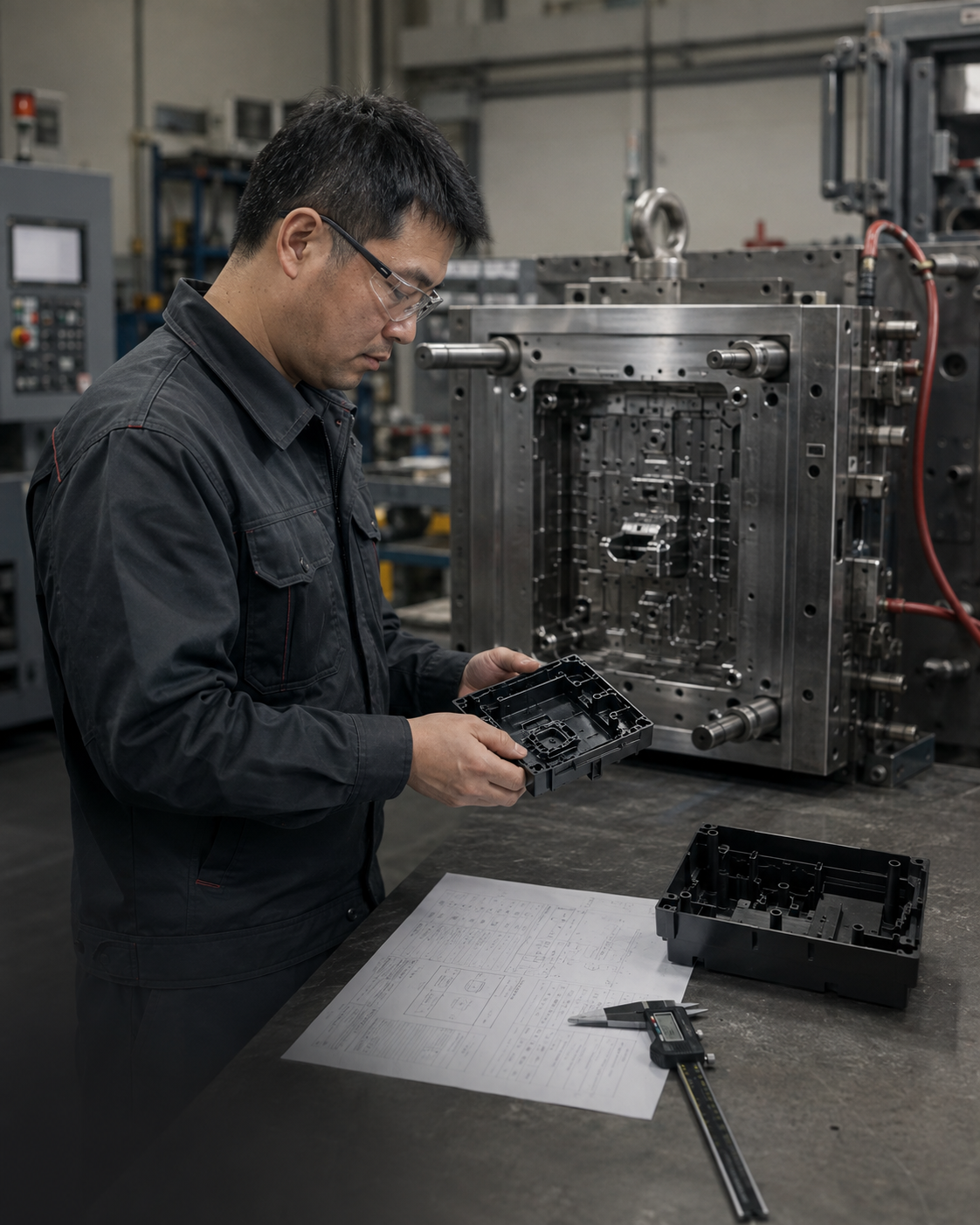

WHAT IS TOOLING VALIDATION
Tooling validation confirms that an injection mold can repeatedly produce parts that meet the agreed quality requirements before full production begins.
During validation, we evaluate the relationship between the mold, molded part, material and process settings. Trial findings are measured, documented and reviewed before the tooling is approved.
The result is a verified production baseline—not simply an acceptable sample from a single molding cycle.
Confirm that the approved part quality can be produced consistently, not achieved only once.
TOOLING VALIDATION PROCESS
Each validation stage answers a different engineering question. Findings are documented and carried forward until the mold, parts and process meet the agreed requirements.
Confirm the drawing, material, critical dimensions, cosmetic standards, assembly interfaces and customer approval requirements.
Run the mold under controlled conditions to verify basic mold operation and identify the first visible tooling and molding risks.
Evaluate molded samples against the agreed dimensional, cosmetic, assembly and functional requirements.
Separate tooling issues from process or design variation before implementing the agreed corrective actions.
Repeat the mold trial to confirm that corrections are effective and the required part characteristics can be reproduced.
Submit the agreed validation records and establish the approved samples and process baseline for production.
Trial rounds, inspection coverage and documentation requirements depend on part complexity, tolerances, material behavior, cosmetic standards and customer-specific approval requirements.
VALIDATION EVIDENCE
VALIDATION DELIVERABLES
Deliverables are defined around the project requirements, part complexity and customer approval process. Each record supports a specific engineering or production decision.
Clearly identified samples from the agreed trial stage for dimensional, cosmetic, assembly and functional review.
Inspection results for agreed critical dimensions or a complete drawing layout, depending on the approved validation scope.
Material, machine information and key molding parameters recorded to support repeat trials and future production setup.
Documented findings, probable causes, agreed corrective actions and confirmation status from subsequent trials.
Approved sample status and confirmed process settings used as the reference for pilot builds and repeat manufacturing.
Full-dimensional layouts, customer-specific templates and additional approval documents should be confirmed during the quotation and project-review stage.

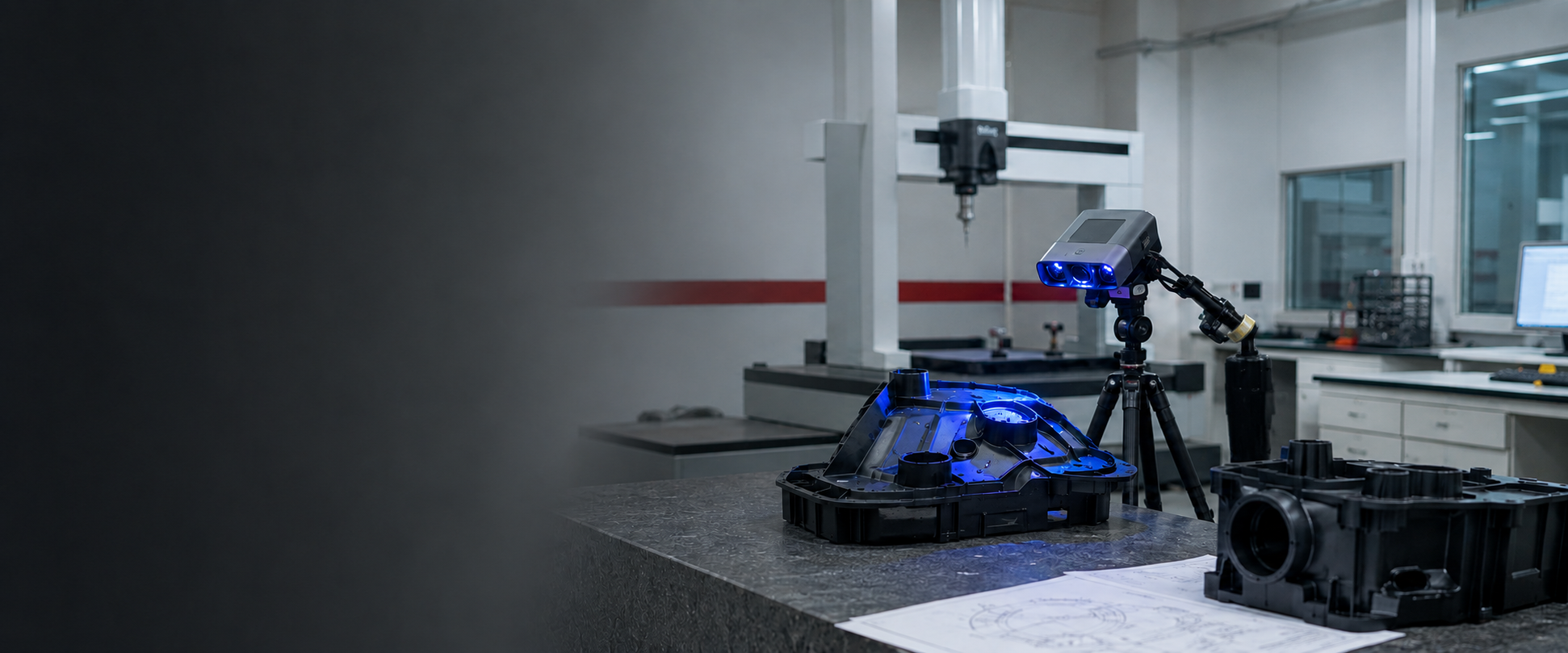

INSPECTION CAPABILITIES
Inspection methods are selected around part geometry, tolerance, appearance and functional requirements. The resulting data supports tooling correction and production approval.
Discuss Inspection Requirements ↗
Critical dimensions, datums and geometric relationships are checked against the approved drawing.
Measured part geometry is compared with CAD data to visualize deviation across complex surfaces.
Color, texture, gloss and visible molding defects are reviewed against the agreed appearance standard.
Assembly interfaces, fastening features and project-specific functions are checked using agreed methods.
Inspection coverage and reporting format are confirmed according to part risk, critical dimensions and customer approval requirements.
WHY HORDRT?
Tooling validation is more efficient when the teams responsible for mold design, toolmaking, injection molding and inspection work within one coordinated manufacturing system.
When a validation issue is found, our engineers can review the tool, process and part together—then coordinate the necessary correction without transferring responsibility between multiple suppliers.
DFM findings, tooling decisions, critical dimensions and appearance requirements remain visible throughout tool build and validation.
Tooling changes can be reviewed and coordinated directly with the moldmaking team after each trial.
Mold behavior, material response and process settings are evaluated together before deciding whether the tool requires modification.
Dimensional, surface and functional findings are returned to the engineering team to guide corrections and confirmation trials.
Please provide your 3D CAD files, dimensioned drawings, material and color specifications, expected production volume, critical dimensions, cosmetic standards, assembly requirements and any customer-specific validation documents. If some requirements are not yet confirmed, our engineers can recommend a practical validation scope.
A mold trial checks whether the mold can operate and produce samples. Tooling validation goes further by comparing the mold, molded parts and process conditions against defined requirements. It also documents the results and verifies corrective actions before production approval.
The number of trial rounds depends on part complexity, tolerances, material behavior, cosmetic requirements and the findings from each trial. Many projects progress through T0 and T1, while demanding parts may require additional confirmation trials before final approval.
Yes, when the specified resin is available and approved. Using the intended production material is important because resin shrinkage, stiffness, drying requirements, appearance and processing behavior can directly affect the validation result.
Depending on the agreed project scope, we can provide dimensional inspection reports for critical features or a complete drawing layout. Inspection support may include CMM measurement, blue-light scanning, conventional measurement, cosmetic inspection and project-specific functional checks.
Our engineers review the part design, mold construction, material behavior, molding parameters and inspection data together. This helps distinguish tooling-related issues from process variation before making permanent steel changes or other corrective actions.
Yes. Please share the required templates, inspection coverage and approval process during the quotation stage. First-article records, project-specific reports and other agreed approval documents can be included in the validation scope.
