CUSTOM ALUMINUM EXTRUSION

Custom Aluminum Extrusion Built to Perform.

Custom aluminum profiles supported by extrusion tooling, precision machining, surface finishing and assembly—from prototypes to production.

Custom Profile Design
Extrusion Tooling
Precision Machining
Anodizing & Finishing

Get a Quote Explore Capabilities

INTEGRATED MANUFACTURING

One Profile.
Multiple Operations.

Extrusion, machining and finishing coordinated around your component requirements.

DESIGN EXTRUSION FINISHING

Custom Profile Development

PROFILE DESIGN

Review cross-sections, wall thicknesses, internal cavities and functional features to improve manufacturability before tooling.

Cross-section review
Wall thickness guidance
DFM feedback

Extrusion Tooling

DIE DEVELOPMENT

Custom extrusion dies developed around the profile geometry, production requirements and required dimensional control.

Solid profiles
Hollow profiles
Sample validation

Precision Secondary Machining

CNC OPERATIONS

Add the precision features required to turn continuous extrusions into installation-ready or assembly-ready components.

Precision cutting
Milling and drilling
Tapping and deburring

Surface Finishing & Assembly

FINAL COMPLETION

Complete the component with protective or decorative finishes, installed hardware and final assembly support.

Anodizing and coating
Brushing and polishing
Hardware installation

ENGINEERING

Profile Review

Review the cross-section, wall thickness, internal features, tolerances and intended application.

Drawing and DFM review

TOOLING

Die Development

Manufacture the extrusion die according to the approved profile geometry and production requirements.

Custom extrusion tooling

EXTRUSION

Profile Extrusion

Heated aluminum billet is pressed through the die to form the continuous custom profile.

Controlled extrusion process

STABILIZATION

Cooling & Stretching

The extruded profile is cooled and stretched to improve straightness and dimensional stability.

Straightness control

MACHINING

Cutting & Machining

Profiles are cut to length and machined with holes, threads, slots or other required features.

Secondary operations

COMPLETION

Finishing & Inspection

Surface treatment, dimensional inspection and final checks prepare the components for delivery.

Finished part verification

6061 VERSATILE

Strong and Machinable

A versatile alloy for structural profiles and components requiring secondary CNC machining.

Good strength Machinable Anodizable

6063 FINISH

Excellent Surface Quality

Commonly selected for profiles requiring clean appearance, good corrosion resistance and decorative anodizing.

Smooth finish Corrosion resistant Complex profiles

6005A STRUCTURAL

Balanced Structural Performance

Suitable for load-bearing extrusions that need a balance of strength, formability and corrosion resistance.

Structural use Good weldability Stable performance

6082 HIGH STRENGTH

Higher-Strength Components

Used for structural and machined components where higher mechanical performance is required.

Higher strength Structural parts Machining support

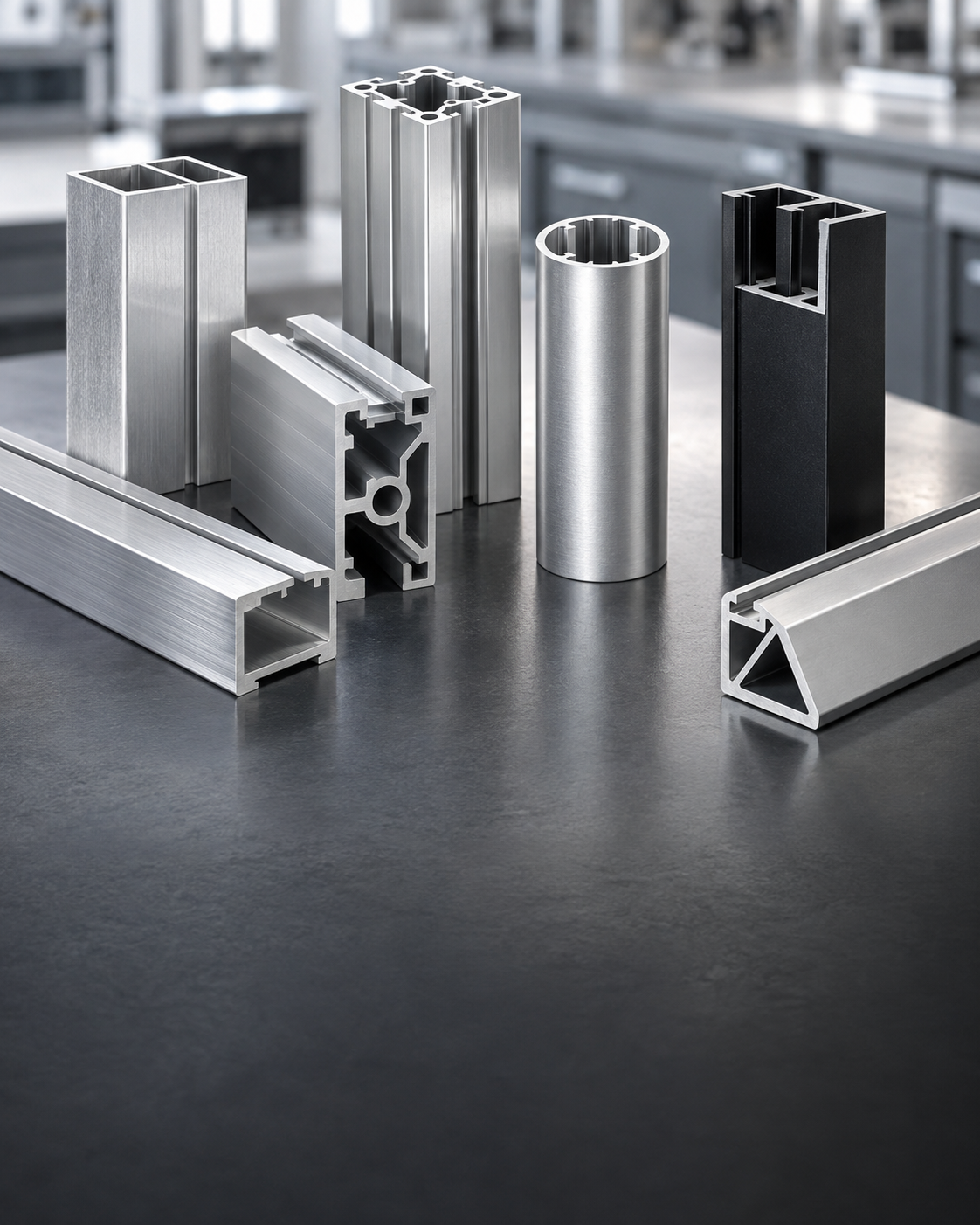

EXTRUDED ALUMINUM Profiles, Alloys & Finishes

MATERIAL SELECTION

Match the Material to the Part.

Select the alloy by balancing the mechanical, dimensional and appearance requirements of the finished component.

Strength Loads and structural performance

Surface Finish Appearance and corrosion resistance

Machining Holes, threads and precision features

Discuss Material Requirements

CLEAR

AN-01 ANODIZING

Clear Anodizing

Protects the aluminum surface while retaining a clean, natural metallic appearance.

Corrosion resistance
Natural aluminum appearance
Improved surface durability

BEST FOR Functional and visible components

BLACK

AN-02 ANODIZING

Black Anodizing

Combines protective anodizing performance with a consistent dark decorative appearance.

Dark uniform finish
Corrosion protection
Professional appearance

BEST FOR Equipment and electronic components

COATED

PC-01 COATING

Powder Coating

Provides durable coverage with flexible choices for color, gloss level and surface texture.

Wide color selection
Matte or textured options
Durable surface coverage

BEST FOR Housings and external structures

BRUSHED

BR-01 MECHANICAL

Brushed Finish

Creates a controlled directional grain for a refined and visually consistent aluminum surface.

Uniform linear texture
Reduced visible surface marks
Suitable before anodizing

BEST FOR Decorative and customer-facing parts

FINISH SELECTION

Define the visual and functional requirements before production.

Color and gloss

Surface texture

Cosmetic acceptance

Operating environment

Discuss Your Finish

PROFILE FLOW WALL DESIGN

Keep Wall Thickness Consistent

Uniform walls support consistent material flow and help reduce uneven cooling, distortion and visible surface variation.

Avoid abrupt transitions between thick and thin sections.

CORNER DESIGN MATERIAL FLOW

Use Appropriate Corner Radii

Rounded internal and external corners support smoother flow and reduce concentrated stress within the profile.

Replace unnecessary sharp corners with practical radii.

HOLLOW SECTIONS DIE DESIGN

Simplify Internal Cavities

Hollow sections can reduce weight and improve stiffness, but complex cavities increase tooling and process sensitivity.

Use clear, balanced cavities whenever the function allows.

PROFILE BALANCE STABILITY

Balance the Cross-Section

Balanced material distribution can improve extrusion flow, cooling behavior, straightness and dimensional consistency.

Avoid concentrating most of the material on one side.

DIMENSIONAL CONTROL TOLERANCES

Apply Tolerances by Function

Overly tight tolerances can increase tooling adjustments, inspection requirements and secondary machining.

Separate critical dimensions from general dimensions.

SECONDARY MACHINING ALLOWANCE

Plan Machining Allowance

Add sufficient material where precision faces, holes, slots or mating features will be machined after extrusion.

Define all machined areas clearly in the component drawing.

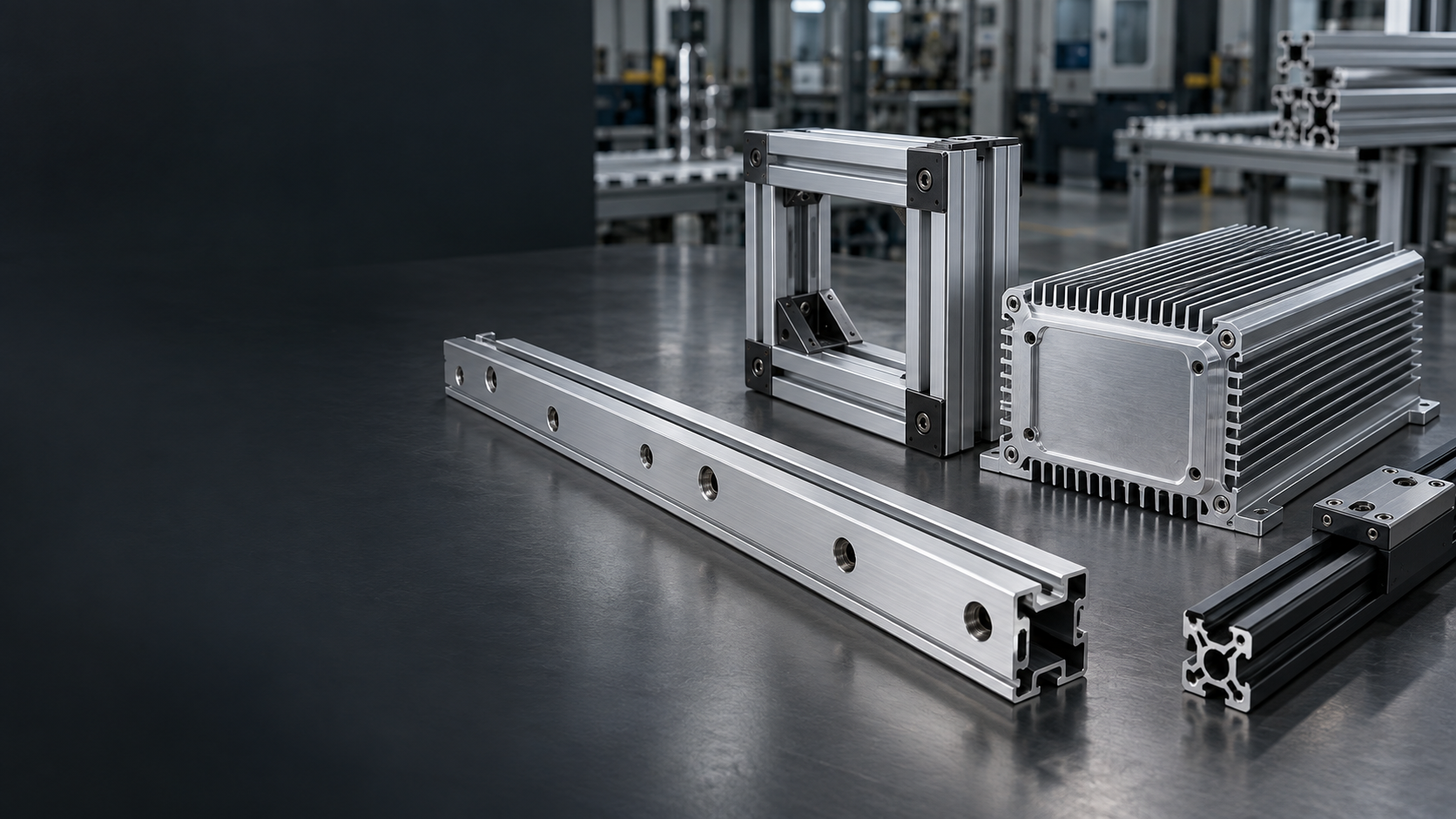

Custom aluminum extrusion applications across different industries

APPLICATION-DRIVEN MANUFACTURING

Profile Geometry Built Around the Final Function.

Lightweight Structures Integrated Features Production-Ready Components

TRANSPORTATION

Automotive & Mobility

Lightweight structural profiles, mounting components, protective rails and precision-machined supports.

Structural profiles
Mounting rails
Lightweight supports

ENGINEERING

Automation & Robotics

Machine frames, motion-system supports, guarding structures and configurable equipment assemblies.

Machine structures
Linear motion supports
Equipment frames

ENCLOSURES

Electronics & Thermal

Extruded housings, heat-management profiles and enclosures with machined openings and finished surfaces.

Electronic housings
Heat-management profiles
Protective enclosures

INDUSTRIAL

Industrial Equipment

Structural members, guides, covers and modular components used in production and processing equipment.

Equipment structures
Guides and rails
Machine components

Aluminum Alloy material

6061

Description

6061 is a multi-functional alloy, which can be heat treated to 6061-T6 and other tempering. Magnesium and silicon are the main alloy elements that can endow materials with high structural strength, toughness and weldability.

characteristic

High toughness,
Good weldability,
Corrosion resistance,

Aluminum Alloy material

6063

Description

6063-T5 is a very economical heat treatable alloy with a smaller grain structure than 6061 alloys. 6063 is more common for extrusions than 6061. It can form parts with thin walls and responds well to finishing processes, making it suitable for decorative applications.

characteristic

High strength
Corrosion resistance
Easily extruded
Economical

PROFILE INSPECTION MAP ILLUSTRATIVE VIEW

Critical profile geometry

Machined features

Functional dimensions

Cross-Section Verification

PROFILE

Compare the produced profile with the approved cross-section and required functional geometry.

Overall profile shape
Wall and cavity features

Dimensional Inspection

DIMENSIONS

Check drawing dimensions, cut length and critical locations according to the inspection requirements.

Critical dimensions
Length and feature location

Machined Feature Check

MACHINING

Verify holes, threads, slots, pockets and mating surfaces created during secondary machining.

Hole and thread position
Mating and machined surfaces

Surface & Final Review

COMPLETION

Review finish consistency, visible surfaces, edge condition and other project-specific requirements.

Finish appearance
Surface and edge condition

INSPECTION METHODS

Measurement selected around the part.

CMM Inspection Critical dimensions and geometric features

Blue-Light Scanning Complex geometry and surface comparison

Standard Measurement Profile dimensions and routine production checks

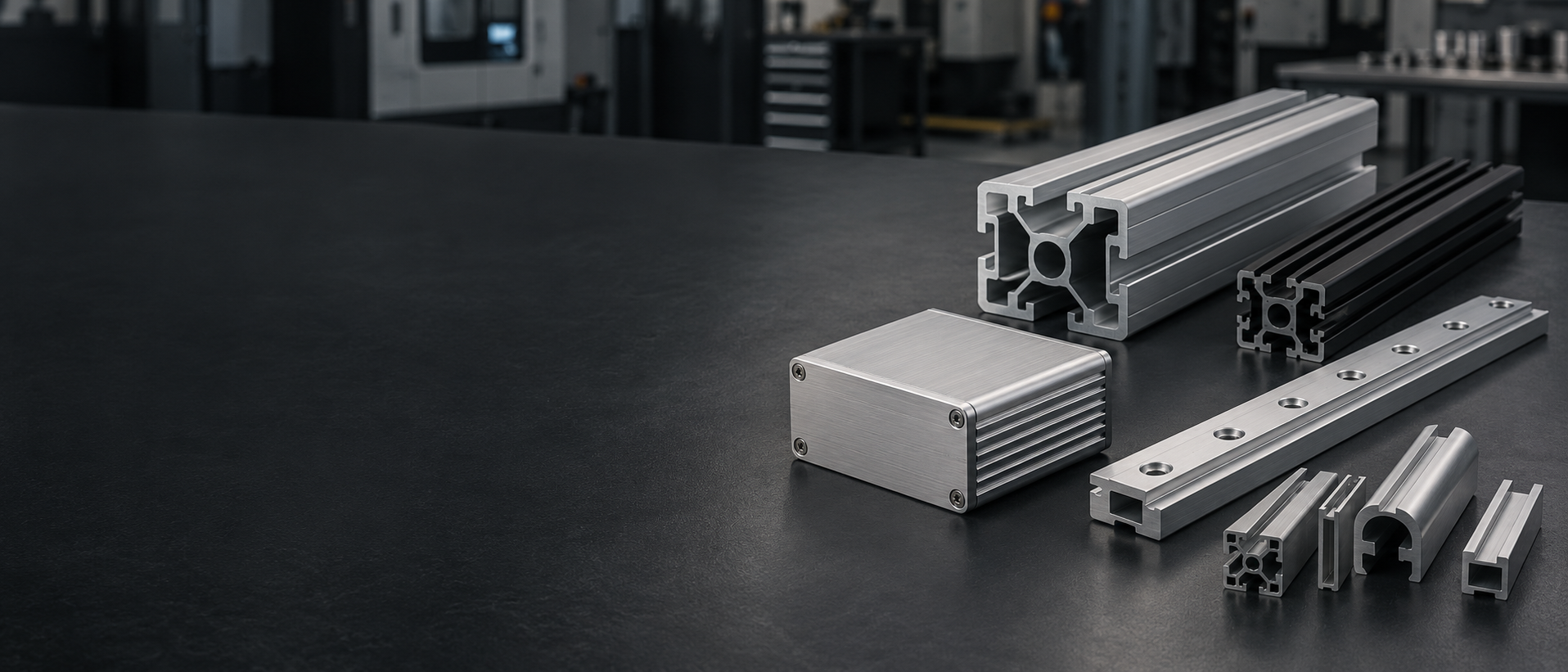

Custom aluminum extrusion profiles and machined aluminum components

START YOUR EXTRUSION PROJECT

Ready to Develop Your Custom Aluminum Profile?

Send us your profile drawing and project requirements. Our team will review the geometry, alloy, tolerances, finish and production needs.

Profile and DFM review
Tooling and production support
Machining and finishing

Get a Quote rfq@hordrt.com

01 What information do you need to quote my aluminum extrusion project?

Please send your 2D drawing or 3D model, preferred aluminum alloy and temper, required profile length, tolerances, surface finish, estimated quantity and any secondary machining or assembly requirements.

02 Which aluminum alloys are available for extrusion?

Common options include 6061, 6063, 6005A and 6082. The appropriate alloy and temper depend on the profile geometry, required strength, corrosion resistance, machining and surface finishing requirements.

03 Can you manufacture custom profile cross-sections?

Yes. We support custom solid, hollow and semi-hollow profiles. Profile geometry, wall thickness, internal cavities and functional features are reviewed before the extrusion die is manufactured.

04 What tolerances can aluminum extrusions achieve?

Achievable tolerances depend on profile size, wall thickness, alloy, geometry, straightness and feature location. Critical dimensions are reviewed individually, and secondary machining can be used where tighter control is required.

05 Is custom tooling required for aluminum extrusion?

A dedicated extrusion die is normally required for a custom cross-section. Tooling cost and lead time depend on the profile size, complexity and whether the design is solid, hollow or semi-hollow.

06 Can you provide machining and surface finishing?

Yes. Secondary services can include precision cutting, CNC milling, drilling, tapping, deburring, anodizing, powder coating, brushing, polishing and hardware installation.

07 Can you support samples and ongoing production?

Yes. We support profile development, extrusion samples, dimensional verification and ongoing production. Project requirements are evaluated according to tooling, material, quantity and secondary processing needs.
