In the modern marketplace, polymeric materials are the backbone of countless products, from consumer electronics and household appliances to automotive components. Their light weight, versatility, and cost-effectiveness are undeniable advantages. However, this widespread use introduces a critical question for engineers and designers: is plastic flammable? For most untreated polymers, the answer is yes, creating a significant fire risk, especially in products involving electrical currents or high temperatures.
This inherent risk has elevated the need for fire-resistant plastic materials. Ensuring a component can resist ignition and limit the spread of fire is now a fundamental requirement for regulatory compliance, public safety, and brand integrity. To create a globally recognized benchmark for this, Underwriters Laboratories (UL) established the UL-94 standard, which provides a definitive method for classifying the flammability of flame-retardant plastics and is a cornerstone of safe product design in plastic injection molding.
What Is UL-94 and Why It Matters in Injection Molding
UL-94 is the "Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances". Its purpose is to provide a preliminary assessment of how a plastic material responds to a flame under controlled laboratory conditions. It's not a certification for a final product, but rather a critical screening tool that allows engineers to compare the flammability characteristics of different materials.
This standard is exceptionally important in injection molding for several reasons:
- Safety and Compliance: Many industries, especially electronics, automotive, and consumer appliances, mandate specific UL-94 ratings for plastic parts to minimize fire hazards. Housings for power supplies, electrical connectors, and casings for unattended devices often require materials with a high degree of flame resistance.
- Risk Mitigation: Using a plastic with the appropriate UL-94 rating helps prevent a small fault (like an electrical short) from escalating into a major fire, protecting both users and property.
- Global Harmonization: The UL-94 standard is aligned with international standards like IATF and ISO, making it a globally relevant benchmark for products sold in different markets.
Understanding UL-94 Flammability Ratings
The UL-94 standard classifies materials into a hierarchy based on their performance in controlled burn tests. These tests evaluate factors like how long a material continues to burn after the flame is removed (after-flame), whether it drips flaming particles, and how quickly it self-extinguishes.
The primary classifications for solid plastics, from least to most flame-retardant, are:
- HB (Horizontal Burn): This is the least stringent rating. The material is tested horizontally and must exhibit a slow, controlled burning rate below a specific limit. It is not considered truly self-extinguishing.
- V-2 (Vertical Burn): In a more demanding vertical test, burning must stop within 30 seconds. However, flaming drips that can ignite a piece of cotton below the sample are permitted. This makes it unsuitable where falling drips could spread a fire.
- V-1 (Vertical Burn): The self-extinguishing time is the same as V-2 (within 30 seconds), but critically, a V-1 rated material cannot produce flaming drips that ignite the cotton. This represents a significant increase in safety.
- V-0 (Vertical Burn): This is one of the most common ratings for demanding applications like electronic enclosures. The criteria are much stricter: burning must stop within 10 seconds, and no flaming drips are allowed.
- 5VB (Surface Burn): This rating involves a much more intense flame applied five times. The material must stop burning within 60 seconds with no flaming drips. However, the test specimen is allowed to develop a hole (burn-through).
- 5VA (Surface Burn): This is the highest UL-94 rating for plastics. The test conditions are the same as 5VB, but crucially, the material cannot have a burn-through. This indicates it can act as a fire barrier, containing a fire within an enclosure.
UL-94 Flammability Ratings Comparison Chart
Common UL-94 Rated Plastics Used in Injection Molding
A wide range of thermoplastics can be compounded with additives to meet specific UL-94 ratings. The choice depends on the application's needs for strength, heat resistance, and cost. Many commodity plastics, like standard polypropylene and polyethylene, are highly flammable, necessitating the use of specialized flame-retardant plastics.

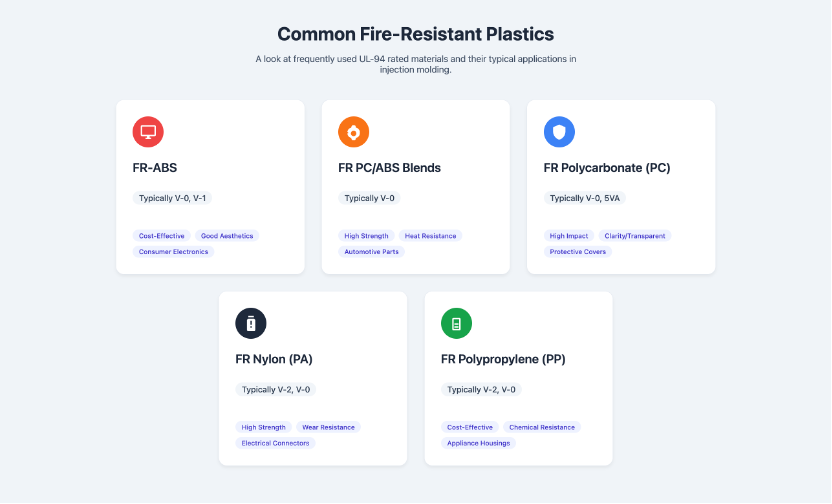

Here are some common fire-resistant plastic materials used in injection molding:
- FR-ABS: A cost-effective choice for consumer electronic housings and business machines, flame-retardant ABS is widely available with UL 94 V-1 or V-0 ratings.
- FR PC/ABS Blends: Alloying polycarbonate with ABS improves heat resistance and impact strength, making these blends ideal for more demanding enclosures and automotive interior parts.
- FR Polycarbonate (PC): Known for its incredible impact strength and clarity, FR-PC can meet V-0 standards, making it perfect for transparent protective covers and electrical components where visibility is key.
- FR Nylon (PA): Valued for high strength and wear resistance, flame-retardant nylons (PA6, PA66) achieve V-2 or V-0 ratings and are used in heavy-duty applications like electrical connectors and automotive under-hood parts.
- FR Polypropylene (PP): While standard PP is highly flammable, FR grades are a popular, cost-effective choice for appliance housings, battery cases, and other electrical components requiring V-2 or V-0 compliance.
Other Considerations When Choosing a UL-94 Rated Material
Selecting a material isn't as simple as picking a rating from a chart. A holistic approach is required:
- End-Use Application and Required UL Rating: The process must start with the product's fire risk. A decorative trim piece may only need an HB rating, while an internal power supply casing will demand a V-0 or 5VA rating to ensure it self-extinguishes and contains any potential fire.
- Part Thickness: This is a critical and often overlooked detail. A UL-94 rating is certified only for a specific thickness. A material rated V-0 at 3.0mm may only achieve a V-2 rating (or fail completely) at a thinner 1.5mm wall, as thin walls heat up and degrade faster. Always check the material's UL Yellow Card for ratings at your part's specific thickness.
- Cost-Performance Balance: Higher flame retardancy usually means a higher material cost. Over-specifying a material (using 5VA when V-0 is sufficient) adds unnecessary expense, while under-specifying introduces unacceptable safety risks.
- Mechanical Strength and Processing: Adding flame retardants can alter a plastic's properties, often reducing impact toughness and making the material more brittle. This must be factored into the design.
- The Injection Molding Process: The manufacturing process itself is a critical control point. Many FR additives are sensitive to heat. If the molding temperature is too high or the material stays in the machine's barrel too long, the additives can degrade, compromising the part's flame resistance. Proper mold design and precise process control are essential to ensure the final part performs as certified.
HordRT’s Injection Molding Capabilities of UL-94 Materials
At HordRT, we understand that achieving a certified UL-94 rating goes beyond material selection. Our expertise in injection molding flame-retardant plastics addresses the critical processing and design challenges they present. We partner with clients to ensure part designs incorporate best practices, such as uniform wall thickness and generous radii, to mitigate the brittleness that FR additives can introduce. Our state-of-the-art injection molding processes feature precise temperature and pressure control to prevent the thermal degradation of additives, ensuring that the flame resistance certified on the datasheet is realized in every component we produce. From material validation to final production, we provide the technical rigor required for safety-critical applications.
Conclusion
The UL-94 standard is an indispensable tool in the development of safe and reliable products. Understanding its classifications and the factors that influence performance—from part thickness to processing parameters—is crucial for any engineer or designer working with plastics. The selection of a fire-resistant plastic material is a systematic process that balances safety, performance, and cost.
Navigating these complexities requires expertise. By partnering with a knowledgeable injection molding specialist like HordRT, you can ensure that your components not only meet regulatory requirements but are also manufactured to the highest standards of safety and quality, protecting your customers and your brand.
