In today’s competitive global market, efficiency, cost reduction, and quality improvement are critical drivers of product success. One methodology that has become a cornerstone of modern engineering and manufacturing is Design for Manufacturing (DFM). By integrating manufacturing considerations early in the product design stage, companies can save time, reduce costs, improve prodcut reliability, and accelerate time-to-market.
This comprehensive guide will walk you through everything you need to know about DFM —— from its principles and benefits to methodologies, practical examples, and industry best practices.
What is Design for Manufacturing (DFM)
Design for Manufacturing (DFM) is the practice of designing products with the manufacturing process in mind. Instead of treating design and manufacturing as two separate stages, DFM ensures that products are optimized for ease of manufacturing, cost-effectiveness, and reliability before production begins.
In simple terms: DFM answers the question —— “ How can we design this product so it can be manufactured as easily, reliably, and economically as possible?”
DFM is often used interchangeably with Design for Manufacturability or Design for Fabrication, but all point to the same concept: integrating design and manufacturing to achieve better outcomes.
Why DFM Matters
The importance of DFM cannot be overstated. Here’s why it is essential for any modern manufacturing enterprise:
1. Cost Savings
Up to 70-80% of a product’s manufacturing cost is determined during the design phase. By applying DFM principles early, companies can avid expensive reworks, reduce waste, and optimize material usage.
2. Faster Time-to-Market
Fewer design iterations and production issues mean products move from concept to market much faster, a critical factor in industries where timing determines competitiveness.
3. Improved Product Quality
Designs aligned with manufacturing capabilities results in fewer defects, higher reliability, and consistent quality.
4. Better Collaboration
DFM encourages cross-functional collaboration between design engineers, manufacturing teams, and suppliers, ensuring all stakeholders contribute to a more manufacturable product.
5. Sustainability
By optimizing material use and minimizing waste, DFM supports eco-friendly production processes, aligning with modern sustainability goals.

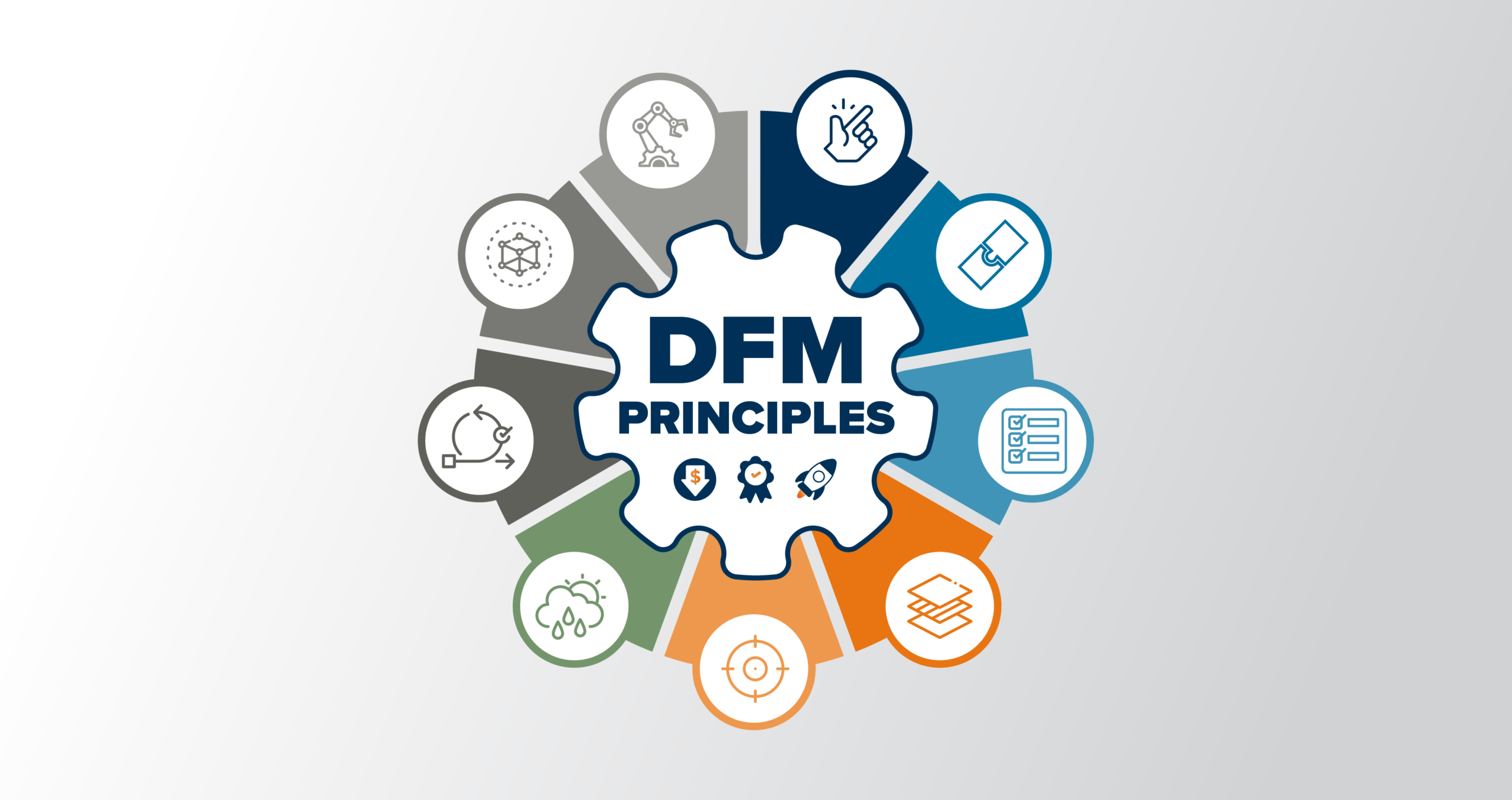

Core Principles of Design for Manufacturing
- Simplify the design
- Reduce the number of components to minimize assembly complexity.
- Fewer parts mean lower material costs, less inventory, and fewer failure points.
- Example: Instead of multiple fasteners, use snap-fit designs where possible.
- Standardize Components and Materials
- Use off-the-shelf parts instead of custom-made ones whenever possible.
- Standardization lowers costs and simplifies procurement.
- Example: Selecting standard screw sizes instead of custom fasteners.
- Design for Efficient Manufacturing Processes
- Match the design to the capabilities of available processes (e.g., injection molding, die casting, CNC machining).
- Avoid features that are difficult or expensive to produce.
- Example: Complex undercuts in injection-molded parts may require costly side actions — redesign to eliminate them.
- Minimize Material Waste
- Optimize geometry to reduce scrap.
- Choose materials that are easy to process and recycle.
- Example: Nesting sheet metal parts efficiently to minimize offcuts.
- Facilitate Easy Assembly
- Ensure parts fit together logically and intuitively.
- Minimize the number of assembly operations (e.g., screws, welding).
- Example: Use self-locating and self-fastening features.
- Ensure Tolerance Feasibility
- Design with realistic tolerances that the manufacturing process can achieve.
- Overly tight tolerances increase cost and complexity.
- Example: Only specify precision where functionality demands it.
- Design for Testing and Quality Control
- Incorporate features that make it easier to inspect, test, and validate products.
- Example: Add test points in PCB design for automated testing.
- Consider the Entire Product Lifecycle
- Think beyond production: include packaging, shipping, maintenance, and disposal.
- Example: Modular designs that allow easier repairs and upgrades.
The DFM Process: Step-by-Step
To successfully apply DFM, companies often follow a structured approach:
Step 1: Cross-Functional Collaboration
Bring together design engineers, manufacturing experts, procurement, and quality teams early in the product development cycle.
Step 2: Define Requirements
Clarify cost targets, performance goals, and manufacturing capabilities upfront.
Step 3: Select Materials and Processes
Choose materials and manufacturing methods that balance performance, cost, and availability.
Step 4: Analyze and Optimize Design
Use simulation tools, CAD/CAM software, and prototyping to validate design manufacturability.
Step 5: Perform Design Review
Conduct formal DFM reviews to identify potential issues before moving to production.
Step 6: Prototype and Validate
Create rapid prototype to test design assumptions and manufacturability.
Step 7: Implement Feedback and Finalize
Incorporate improvements from prototyping and finalize the design for mass production.
Common DFM Guidelines by Manufacturing Process
Different manufacturing methods have unique design rules. Here are examples:
- Maintain uniform wall thickness to prevent warping.
- Avoid sharp corners — use fillets.
- Use draft angles for easy ejection from molds.
- Avoid deep cavities that require long tool reach.
- Use standard drill sizes for holes.
- Minimize tight tolerance unless.
- Provide draft angles for easier part release.
- Avoid large flat surfaces prone to warping.
- Ensure uniform wall thickness.
- Standardize bend radii to simplify tooling.
- Keep hole diameters larger than material thickness.
- Minimize complex cutouts to reduce laser/cutting costs.
Benefits of Implementing DFM
- Companies that embrace DFM experience measurable benefits:
- Cost Reductions: Lower labor, tooling, and material costs.
- Improved Yield: Higher first-pass success rate.
- Fewer Design Iterations: Less time wasted in revisions.
- Better Supplier Relationships: Designs aligned with supplier capabilities.
- Higher Customer Satisfaction: Reliable, consistent product quality.
Tools and Technologies Supporting DFM
- CAD/CAM Software: For 3D modeling and manufacturability analysis.
- Finite Element Analysis: For stress and thermal testing of components.
- DFM Analysis Software: Automated tools that flag design issues before prototyping.
- Rapid Prototyping:For quick validation of designs.
Conclusion
Design for Manufacturing (DFM) is not just a design principle; it is a philosophy of integrating design and manufacturing into a seamless process. By applying DFM, companies can achieve significant cost savings, improve product quality, accelerate production, and remain competitive in a rapidly evolving market.
Incorporating DFM early in product development ensures that innovation is practical, efficient, and market-ready. As manufacturing technologies evolve, DFM will remain a cornerstone of successful product development.
