One of the most consistently underestimated—yet critically important—elements in plastic injection molding is the parting line. Many designers see the parting line (sometimes called a molded line) as a minor cosmetic flaw to be dealt with later. But from a manufacturer's perspective, it's the very foundation of a successful molding strategy. It’s the seam where the different halves of the mold tool meet. While it's an unavoidable aspect of parting line injection molding, its placement and quality can make or break a product's success.
This article isn't just about hiding a seam; it’s about strategically managing it. I'll share my experience from the factory floor to help you understand how professional parting line management elevates the quality, function, and cost-effectiveness of your parts.
The Critical Impact of Parting Line Placement
The decision of where to place a parting line has cascading effects on the final part. We look at it from three main angles: aesthetics, functionality, and cost.
1. Aesthetics: The Visible Difference
The most obvious impact is visual. A well-placed parting line is virtually invisible, while a poorly placed one can make a high-quality product look cheap.
- Hiding on Edges: The gold standard is to place the parting line along a sharp, crisp edge of the part. Think of it like a seam on a piece of clothing—it’s naturally hidden along an existing edge. When the two mold halves meet at a sharp corner, any slight mismatch is camouflaged by the geometry itself. This creates a clean, seamless appearance without any extra work.
- Exposure on Curved Surfaces: This is where problems often arise. Placing a parting line on a smooth, continuously curved surface is a major challenge. Even with our most precise CNC machines, creating two perfectly matched, complex surfaces is incredibly difficult. Any microscopic misalignment between the mold halves will create a noticeable step or ridge on the part. Worse, this area becomes highly susceptible to flash—a thin film of excess plastic that seeps into the tiny gap between the mold halves. This flash must then be manually trimmed, leaving behind a rough or scarred surface.
2. Functionality: More Than Skin Deep
Beyond looks, the parting line in plastic design directly impacts how the part works.
- Ejection & Draft: The parting line defines the "line of draw," or the direction the mold opens and the part is ejected. All surfaces parallel to the line of draw must have a slight angle, or draft, to allow the part to release smoothly. Placing the parting line incorrectly can create "undercuts," features that get trapped in the mold and prevent ejection without complex, costly mechanisms like side-actions or lifters.
- Potential Assembly Issues: In my experience, a raised or jagged parting line is a common culprit for assembly failures. If a part needs to fit snugly into another, or if a clip needs to snap into place, a poorly managed molded line can create just enough interference to prevent a secure connection.
- Critical Functional Areas: This is a non-negotiable rule: never place a parting line on a sealing surface. For example, if you're designing a cap with an O-ring groove, the parting line cannot run across the surface where the O-ring sits. Any imperfection, no matter how small, will create a leak path and cause the seal to fail.
3. Cost: The Bottom Line
Ultimately, every design decision ties back to cost. A simple, straight parting line on a flat plane is the easiest and cheapest to machine.
- Mold Complexity: As the parting line becomes more complex—stepping up and down or following a complex 3D contour—the cost of creating the mold increases significantly. A contoured parting line requires highly precise multi-axis CNC milling and meticulous hand-finishing (benching) to ensure the two halves match perfectly, adding both time and expense to the tool-making process.
- Post-Processing: As mentioned, a visible parting line with flash requires manual labor. Trimming, sanding, or polishing each individual part adds up quickly, increasing the final cost per unit and slowing down production. A smart design eliminates this step entirely.
Material Matters: Thermoplastics vs. Liquid Silicone Rubber (LSR)
The material you choose also influences how we approach the parting line.
1. Thermoplastics
For common materials like ABS, Polycarbonate, and Nylon, the principles I've discussed are the standard playbook. The goal is always to hide the line on a sharp edge and ensure proper draft for clean ejection.
2. Liquid Silicone Rubber (LSR)
LSR is a different animal altogether. It’s a thermoset material injected into a heated mold as a low-viscosity liquid, almost like water. This presents unique challenges.
- Extreme Flowability: Because LSR is so fluid, it will exploit any gap it can find. In our molds, we hold tolerances so tight that we have to account for the thermal expansion of the steel itself. LSR will create flash in a gap as small as 0.0002 inches (about 5 microns). This demands an exceptional level of precision in mold making, far beyond what is required for most thermoplastics.

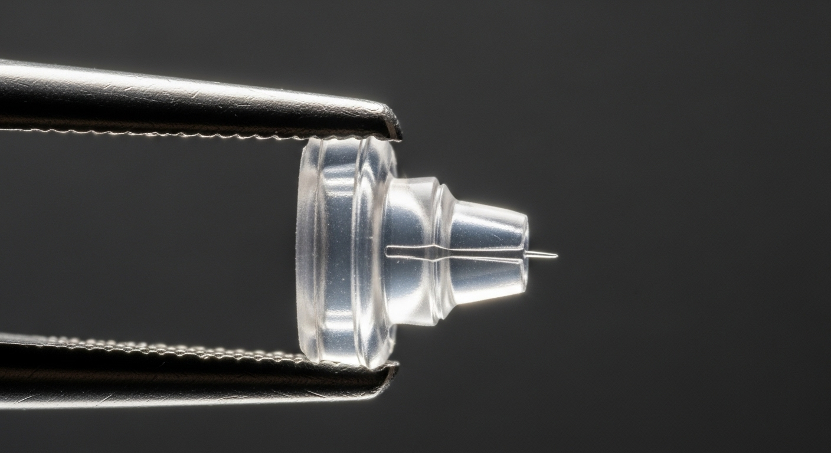

- Finer Lines: The good news is that a well-made LSR part will have a much less noticeable parting line. However, completely preventing it is nearly impossible due to the material's nature. Therefore, the strategy for LSR is to simplify the parting line as much as humanly possible to minimize any potential for flash.
The HordRT Solution: A Proactive, Collaborative Approach
At HordRT, we don't just take a file and make a mold. We see ourselves as partners in your design process. When we receive a 3D model, my team and I immediately perform a comprehensive Design for Manufacturability (DFM) analysis, with the parting line as a primary focus.
We go beyond automated software reports. We use our experience to understand the part's final application. Will this surface be visible to the customer? Does this edge need to be perfectly smooth for functional reasons? We’ll propose a parting line strategy that balances aesthetics, function, and cost. If we see a potential issue, we won't just flag it; we'll proactively suggest design modifications that will result in a better, more cost-effective part. Our goal is to solve these challenges on the screen, not with the steel.
Conclusion
A deep understanding and professional handling of the parting line is a critical step toward injection molding success. It’s not a flaw to be corrected later; it’s a fundamental design feature that should be planned from the very beginning. By placing it strategically on sharp edges, keeping it off functional surfaces, and simplifying its geometry, you can create a cleaner, better-performing, and more economical product.
If you're struggling with parting line in plastic design or want to ensure your next project is optimized from the start, don't hesitate to reach out. The team at HordRT is here to help you turn this manufacturing necessity into a seamless part of your product's success.
