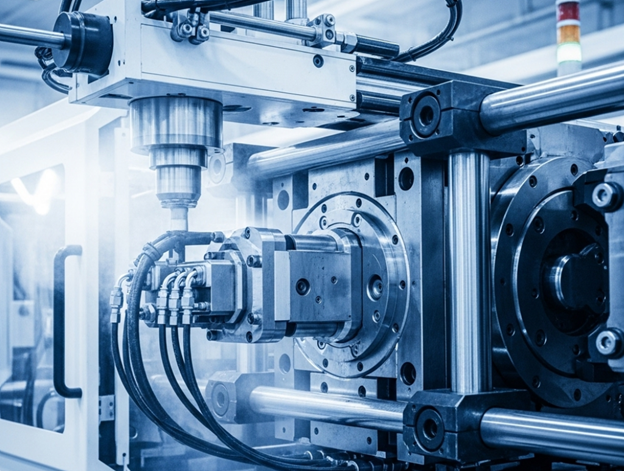

In the world of plastic part manufacturing, the draft angle in injection molding is a critical yet often overlooked design element. For engineers, product designers, and manufacturers alike, understanding draft angles is essential to producing high-quality parts that are easy to eject from the mold and cost-effective to manufacture.
This article explains what a draft angle is, why it matters in the injection molding process, and how to design effective draft angles to optimize part performance, mold longevity, and production efficiency.
What is a Draft Angle in Injection Molding?
A draft angle is the slight taper added to the vertical walls of a plastic part during design. In simple terms, it’s an angle—typically between 1 to 2 degrees—that allows the part to release easily from the mold without sticking or causing surface damage.

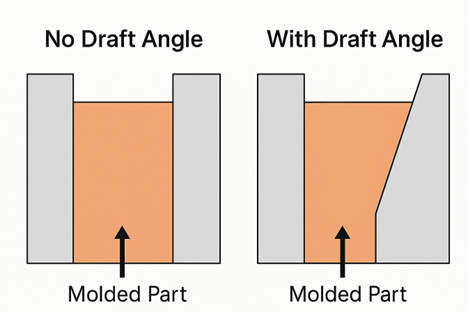

Imagine trying to remove a flat-sided ice cube from a tray. If the sides are perfectly vertical, it’s difficult. But with a slight taper, the cube slides out easily. The same principle applies to draft angle injection molding: the angle between the mold wall and the part surface makes ejection smoother and cleaner.
Why is Draft Angle Important?
Adding an appropriate injection mold draft angle to your part design brings several crucial benefits:
1. Facilitates Part Ejection
Draft angles prevent the molded part from sticking to the mold. Without proper draft, significant force is required to eject the part, increasing the risk of part damage or deformation.
2. Prevents Surface Damage
A lack of draft can cause drag marks or scratches on the surface of the part as it is pushed out. Draft angles reduce friction, preserving the surface quality—especially important for parts with cosmetic or functional finishes.
3. Improves Manufacturing Efficiency
Proper injection molding draft angle design leads to smoother ejection, reduced wear on mold components, and shorter cycle times. This directly translates into improved productivity.
4. Reduces Costs
Drafted parts require less ejection force, reducing stress on the mold and increasing mold life. The result is fewer defects, lower maintenance costs, and overall better return on tooling investment.
Standard Draft Angle Guidelines
While each application may require customized draft angles, here are general guidelines to follow
(Minimum Recommendation):
- 1° is typically sufficient for most parts.
- 2° or more is ideal, especially for deep or textured surfaces.
Factors Influencing Draft Angle Selection
- Surface Finish: Textured or matte finishes need larger draft angles (up to 5° or more) to prevent sticking.
- Wall Height: The taller the vertical wall, the more draft is needed to ensure smooth release.
- Material Shrinkage: Materials with high shrinkage may require increased draft to avoid internal stress during ejection.
- Ejection Method: The type of ejection system (pins, sleeves, air) can influence the draft requirement.
How to Design Draft Angles in Injection Molding
Designing effective draft angle injection molding features starts at the CAD level. Here are some best practices:
1. Apply Draft to All Vertical Faces
All surfaces parallel to the mold opening direction should include a draft. The draft should begin at the parting line and extend in the direction of mold opening.
2. Use Strategic Parting Lines
Aligning complex geometry with smart parting line placement can minimize the number of surfaces needing high draft angles.
3. Design for Manufacturability (DFM)
Always keep mold construction and ejection in mind when designing. Overlooking draft angles in early design stages can lead to expensive redesigns or tooling complications.
4. Avoid Common Mistakes
- Ignoring textured surfaces
- Forgetting to add draft on internal features (like bosses or ribs)
- Applying inconsistent angles that create uneven mold wear
5. Use Simulation Tools
Modern CAD and mold flow analysis tools can simulate ejection and identify problem areas. Incorporate these tools early in the design process to optimize injection molding draft angle implementation.
HordRT’s Approach to Injection Mold Draft Angle Design
At HordRT, we understand that precise draft angle design is not just about making parts easier to eject—it’s about ensuring long-term manufacturing success. Our team of experienced engineers applies DFM principles from the start, analyzing your design for optimal moldability and performance.
We leverage advanced CAD software, mold flow simulations, and a deep understanding of material behaviors to recommend the best draft angle in injection molding for your specific product. Whether you're working with complex geometries or surface textures, we ensure every part can be manufactured with efficiency and reliability.
Conclusion
A well-designed draft angle in injection molding is a small detail with a significant impact. It ensures smooth part ejection, prevents surface damage, enhances production efficiency, and reduces tooling costs.
To recap:
- Draft angles are essential for successful part release.
- 1–2° is the industry standard for most applications.
- Draft design should be integrated early in the design phase.
- Simulation tools and DFM principles help avoid costly errors.
By prioritizing proper injection mold draft angle design from the beginning, you lay the foundation for higher quality parts and more efficient production—whether you're working with a simple enclosure or a complex custom component.
