In the world of plastic manufacturing, injection molding and blow molding are two of the most essential production technologies. These processes are responsible for a vast number of plastic products we use daily, from car parts and electronic devices to packaging and medical supplies. While both methods use thermoplastic resins to create finished goods, they are based on different principles and produce very different outcomes.

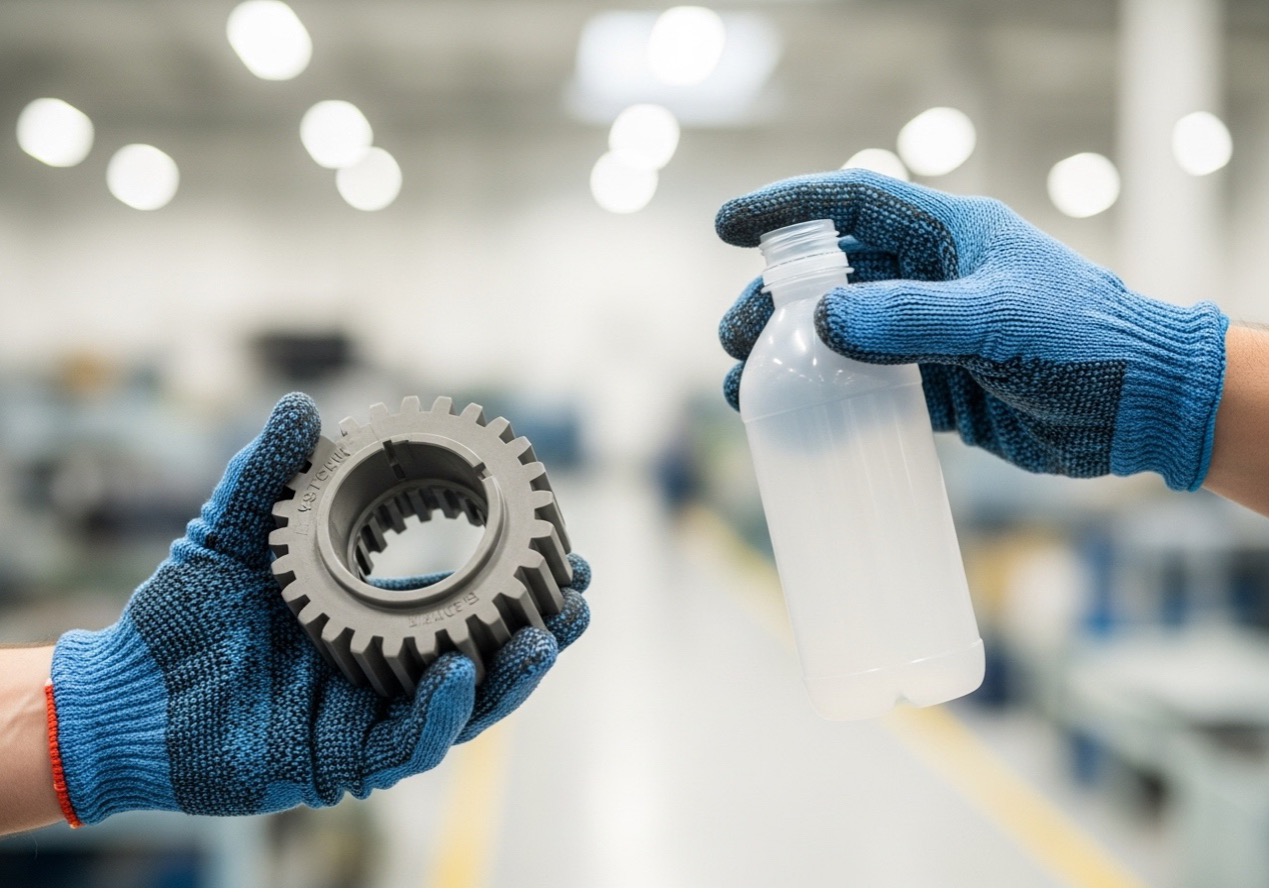

The most important distinction between blow molding vs. injection molding is the geometry of the final product. Injection molding creates solid parts, while blow molding produces hollow ones. Understanding this fundamental difference is a critical first step in the manufacturing selection process. Making the right choice has a major impact on a project's cost, the quality of the final product, and its time-to-market. An incorrect decision can lead to budget overruns, product failures, and missed market opportunities.
What Is Injection Molding?
Injection molding is a highly precise manufacturing process used to produce solid plastic parts in large volumes. It excels at creating components with complex shapes and high structural integrity.
The injection molding process involves a high-speed, automated cycle with five key steps:
- Clamping: A powerful hydraulic unit holds the two halves of a steel mold tightly together. This immense force prevents the molten plastic from leaking out under pressure.
- Injection: Raw plastic pellets are melted in a heated barrel and forced into the mold's cavity by a reciprocating screw. This occurs under extremely high pressure to ensure the material fills every detail.
- Dwelling (Packing): After the initial injection, pressure is maintained to pack more material into the mold. This compensates for material shrinkage as the plastic cools, preventing voids and ensuring a dense part.
- Cooling: The plastic part cools and solidifies inside the mold, taking on its final shape. This is typically the longest part of the cycle and is influenced by the part's wall thickness, material thermal conductivity, and mold cooling system design.
- Ejection: Once the part is sufficiently rigid, the mold opens, and an ejector system pushes the finished part out.
One of injection molding's greatest strengths is its compatibility with a wide range of materials. Common materials include:
- ABS (Acrylonitrile Butadiene Styrene): Known for its high impact resistance and excellent surface finish, used in electronic housings and LEGO bricks.
- Polycarbonate (PC): Offers exceptional toughness and transparency, making it ideal for safety glasses and machinery guards.
- Nylon (PA): Features high mechanical strength and low friction, perfect for gears, bearings, and fasteners.
- Polypropylene (PP): Valued for its chemical resistance and flexibility, commonly used for food containers and automotive bumpers.
Typical applications for injection molding are found across industries and include solid, complex components like automotive instrument panels, computer housings, bottle caps, and medical syringes.
What Is Blow Molding?
The blow molding process is specifically designed to create hollow, thin-walled plastic parts. The core principle involves inflating a heated, tube-like piece of plastic, known as a parison or preform, inside a mold cavity. Low-pressure air forces the plastic to expand and conform to the shape of the mold.
There are three main types of blow molding:
- Extrusion Blow Molding (EBM): This is the simplest and most common method. A continuously extruded hollow plastic tube (parison) is captured in a mold and inflated with air. It is highly effective for large-volume containers like milk jugs, industrial drums, and shampoo bottles.
- Injection Blow Molding (IBM): This two-stage process offers greater precision. First, a test-tube-shaped preform with finished threads is created using injection molding. The warm preform is then transferred to a blow mold and inflated to form the final shape. IBM is ideal for smaller, high-precision containers like cosmetic jars and pharmaceutical bottles.
- Injection Stretch Blow Molding (ISBM): An advanced version of IBM, this process stretches the preform both vertically and radially during inflation. This biaxial stretching aligns the polymer molecules, significantly improving the part's strength, clarity, and gas barrier properties. ISBM is the preferred method for making pressurized containers like carbonated soft drink and water bottles.
Materials used in blow molding must have enough melt strength to form a stable parison. The most common resins are:
- HDPE (High-Density Polyethylene): Low-cost, durable, and food-safe, this is the go-to material for milk jugs, fuel tanks, and coolers.
- PET (Polyethylene Terephthalate): Known for its exceptional clarity and barrier properties, it is primarily used in ISBM for water and soda bottles.
- PP (Polypropylene): Offers higher heat resistance than HDPE, making it suitable for hot-fill containers and medical parts.
Blow molding is the engine behind countless hollow products, including beverage bottles, automotive fuel tanks, chemical drums, and coolers.

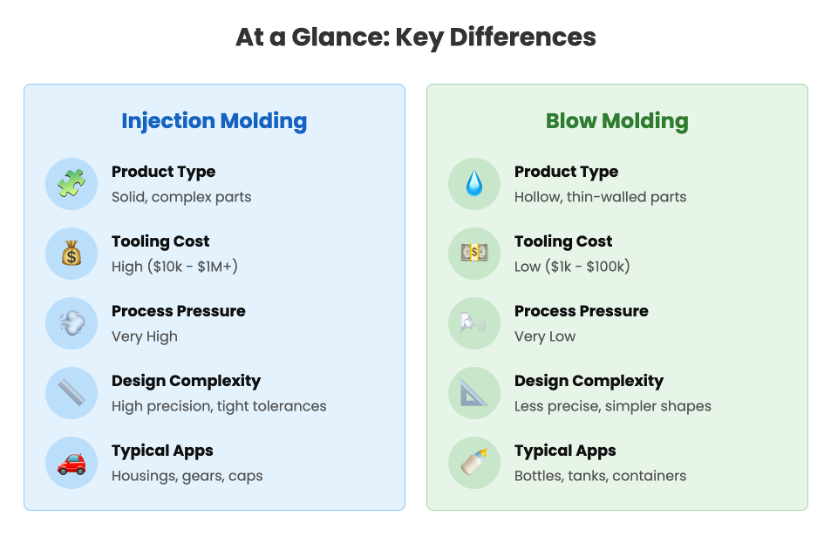

Injection vs. Blow Molding: Key Differences
The choice between injection molding and blow molding depends on several key distinctions:
- Process Technique: Injection molding is a high-pressure process that injects molten plastic into a cavity to form a solid object. Blow molding is a low-pressure process that uses air to inflate a plastic tube into a hollow shape.
- Tooling Cost: Injection molds are extremely expensive ($10,000 - $1M+) because they must be made from hardened steel to withstand immense pressure. Blow molds are significantly more affordable ($1,000 - $100,000) as they only need to contain low air pressure and can be made from aluminum.
- Cycle Time: Injection molding cycle times are often between 15 and 120 seconds, dominated by the part's cooling time. Blow molding cycles can be very fast, and using multi-cavity tools can lead to extremely high throughput.
- Product Types: Injection molding produces solid, intricate parts with high precision. Blow molding exclusively creates hollow, thin-walled parts with simpler geometries.
- Material Efficiency: In injection molding, the primary waste comes from the runner system that feeds plastic to the part, which is typically recycled. Blow molding generates "flash"—excess material squeezed out by the mold—which must be trimmed and recycled.
- Design Complexity: Injection molding allows for a high degree of complexity, including intricate features and tight tolerances. Blow molding is a less precise process with looser tolerances and challenges in controlling uniform wall thickness.
How to Choose Between Injection and Blow Molding
Selecting the right process requires evaluating four key factors:
- Product Design (Solid vs. Hollow): This is the most important criterion. If the part must be hollow (like a bottle or tank), blow molding is the correct choice. If the part is solid (like a gear or housing), injection molding is the necessary process.
- Volume of Production: For high-volume production of solid parts, injection molding is more cost-effective. Although the initial tooling cost is high, the low cost-per-part makes it economical for runs in the hundreds of thousands or millions.
- Budget and Tooling Cost: For projects with limited upfront capital or smaller production runs, blow molding's lower tooling cost is a significant advantage.
- Material Compatibility: If the product requires high-performance engineering resins with exceptional strength or heat resistance, these materials are often best suited for the high-pressure injection molding process. If the key requirements are durability and low cost for a container, materials like HDPE used in blow molding are ideal.
HordRT's Expertise in Injection Molding
While understanding these differences is vital, project success depends on the manufacturing partner's capabilities. For projects requiring the precision, complexity, and quality of injection molding, partnering with an expert manufacturer like HordRT provides a strategic advantage.
HordRT is a professional custom manufacturer with over a decade of experience in plastic injection molding. They offer an end-to-end solution, beginning with a complimentary Design for Manufacturability (DFM) analysis to optimize designs and reduce risk before production. A key benefit is their "No MOQ Required" policy, offering flexibility for both startups and large enterprises.
HordRT has invested heavily in cutting-edge technology, including high-precision electric injection molding machines and revolutionary rapid mold change systems that reduce downtime and make small-batch production more economical. They also offer advanced services like overmolding and insert molding, supported by an extensive library of over 1,000 traceable material options.
Conclusion
In the blow molding vs. injection molding debate, there is no single "better" process—only the most appropriate one for a specific application. The choice is clear: injection molding is the premier method for creating solid, complex, and high-precision parts where strength and detail are critical. In contrast, blow molding is the unmatched champion for producing hollow, lightweight items like bottles and tanks efficiently and at a massive scale.
Ultimately, a successful product launch hinges on a strategic process choice based on geometry, volume, budget, and material needs. For projects demanding complex solid components where performance and quality are non-negotiable, injection molding is the definitive path forward.
