Amorphous injection molding is a manufacturing process that utilizes amorphous plastics to create high-precision parts. Unlike crystalline plastics, amorphous plastics lack a defined molecular structure, which gives them unique properties such as high transparency, superior moldability, and excellent impact resistance.
Amorphous injection molding is widely used in industries like electronics, medical devices, automotive, and optics. It allows manufacturers to produce complex plastic parts with excellent surface finish and dimensional accuracy.
What is Amorphous Injection Molding?
Amorphous injection molding is a process where amorphous plastics are heated to a molten state, injected into a mold, and then cooled to form a solid shape. These plastics do not have a crystalline structure, meaning they do not exhibit a distinct melting point but rather soften over a temperature range.

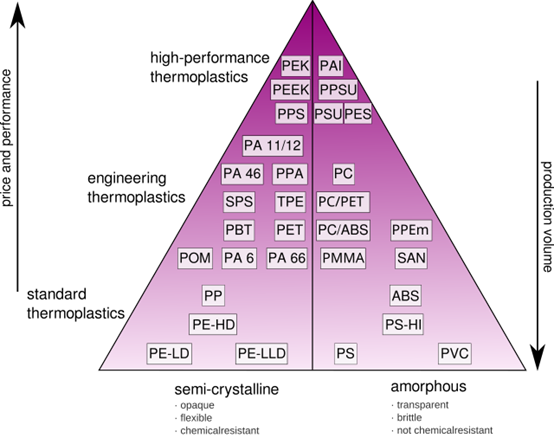

Differences Between Amorphous and Crystalline Plastics
- Amorphous Plastics: Have a random molecular structure, making them highly transparent, easy to mold, and resistant to cracking. This makes them ideal for applications that require optical clarity and intricate designs.
- Crystalline Plastics: Have a well-ordered molecular arrangement, resulting in higher chemical resistance, better wear properties, and a distinct melting point.
Process of Amorphous Injection Molding
- Heating: The amorphous plastic is heated until it becomes a molten fluid.
- Injection: The molten plastic is injected into a mold cavity under high pressure.
- Cooling: The mold cools the plastic, solidifying it into the desired shape.
- Ejection: The finished part is removed from the mold.
Advantages of Amorphous Plastics
1. Exceptional Optical Properties
Amorphous plastics, such as polycarbonate (PC) and polymethyl methacrylate (PMMA), offer high transparency and excellent light transmission. This makes them ideal for lenses, display screens, and optical components.
2. Superior Moldability
Since amorphous plastics have excellent flow properties, they can fill intricate mold designs without defects. This allows for the production of complex and precise plastic components.
3. Impact Resistance and Heat Resistance
Many amorphous plastics exhibit excellent impact strength and thermal stability. For example, PC can withstand high impact forces, making it suitable for protective covers and electronic casings.
4. Design Flexibility
Amorphous plastics enable the creation of complex geometries and fine details that would be difficult to achieve with crystalline materials. This makes them valuable for high-precision industries like medical devices and consumer electronics.

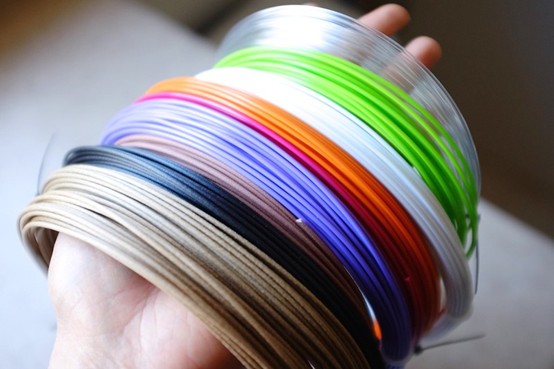

Common Amorphous Plastic Materials
When selecting an injection molding material, it's important to understand the properties of amorphous plastics. Below are some common materials used in amorphous injection molding:
- Polycarbonate (PC): Offers high impact strength, transparency, and heat resistance. Used in electronic housings, safety glasses, and automotive components.
- Polymethyl Methacrylate (PMMA): Known for its superior optical clarity, often used in lenses, display panels, and light diffusers.
- Polystyrene (PS): A cost-effective material with good moldability, commonly used in packaging, medical devices, and consumer products.
- Polyimide (PI): Highly heat-resistant and durable, making it suitable for aerospace and high-performance applications.
For a more detailed injection molding material selection guide, manufacturers should consider factors such as chemical resistance, mechanical properties, and thermal stability.
Advantages and Challenges of Amorphous Injection Molding
Advantages
- High Production Efficiency: The molding process is fast and can produce high volumes of parts with minimal waste.
- Excellent Surface Finish: Amorphous plastics result in smooth, glossy surfaces without the need for post-processing.
- Consistent Dimensional Accuracy: The lack of crystallization reduces shrinkage and warping, ensuring precise tolerances.
Challenges
- Temperature Control: Amorphous plastics require precise temperature management to prevent degradation during molding.
- Cost Considerations: Some amorphous materials, such as polycarbonate, can be more expensive than crystalline alternatives.
Applications of Amorphous Injection Molding
1. Electronics and Consumer Goods
Amorphous plastics are widely used in electronic devices, including smartphone casings, laptop screens, and display panels. Their optical clarity and impact resistance make them ideal for such applications.
2. Medical Industry
Transparent molded parts, such as syringes, diagnostic equipment, and medical device housings, benefit from the high purity and chemical resistance of amorphous plastics.
3. Automotive Industry
Amorphous plastics are used in interior trims, transparent windows, and headlamp covers. Their superior impact resistance enhances safety features in vehicles.
4. Optical Sector
Lenses, LED covers, and eyeglass frames are often manufactured using amorphous injection molding due to the high optical quality and surface smoothness of the materials.
Conclusion
Amorphous injection molding is a crucial process for manufacturing high-quality plastic components with excellent optical clarity, strength, and precision. By selecting the right amorphous plastics and optimizing the molding process, manufacturers can achieve superior product performance.
At HordRT, we specialize in various amorphous injection molding spec and provide high-precision injection molding solutions for industries such as electronics, medical devices, automotive, and optics. Our expertise in injection molding material selection guide ensures that we help businesses choose the best materials for their applications. Contact us today to learn how our advanced molding services can enhance your product quality and manufacturing efficiency.
